Scope of application of drilling rig

①　This drilling rig is suitable for drilling projects such as survey and exploration, geophysical exploration, road and construction exploration, and blasting holes. ②　According to the different strata, alloy, steel sand and steel grain drill bits can be selected for drilling.

 ③　It can drill sandy clay and bedrock layers of grades 2-9.

④　The rated drilling depth is 100m, and the maximum depth shall not exceed 120m. The rated opening diameter is 110mm, the maximum opening diameter is allowed to be 130mm, the final hole diameter is 75mm, and the drilling depth depends on the stratum conditions.

Features of drilling rig

①　It has an automatic hydraulic feed mechanism to improve drilling efficiency and reduce the labor intensity of workers.

 ②　The ball clamping mechanism is used instead of the chuck, which can implement non-stop reversal of the rod, and the operation is convenient, safe and reliable.

③　Equipped with a bottom hole pressure gauge to indicate the pressure, which is convenient for understanding the situation in the hole.

④　The handle is centralized and easy to operate.

⑤　The structure is compact, and the drilling rig, water pump and diesel engine are all installed on the same base, occupying a small area.

⑥　Lightweight, strong decomposability, easy to move, suitable for work in plains or mountainous areas.

Technical data

Diameter of opening hole: 110mm

Diameter of final hole: 75mm

Drill rod diameter: 42mm

Drilling inclination: 90°-75°

Drilling rig dimensions (L×B×H): 1640×1030×1440

Drilling rig weight (excluding power machine): 500Kg

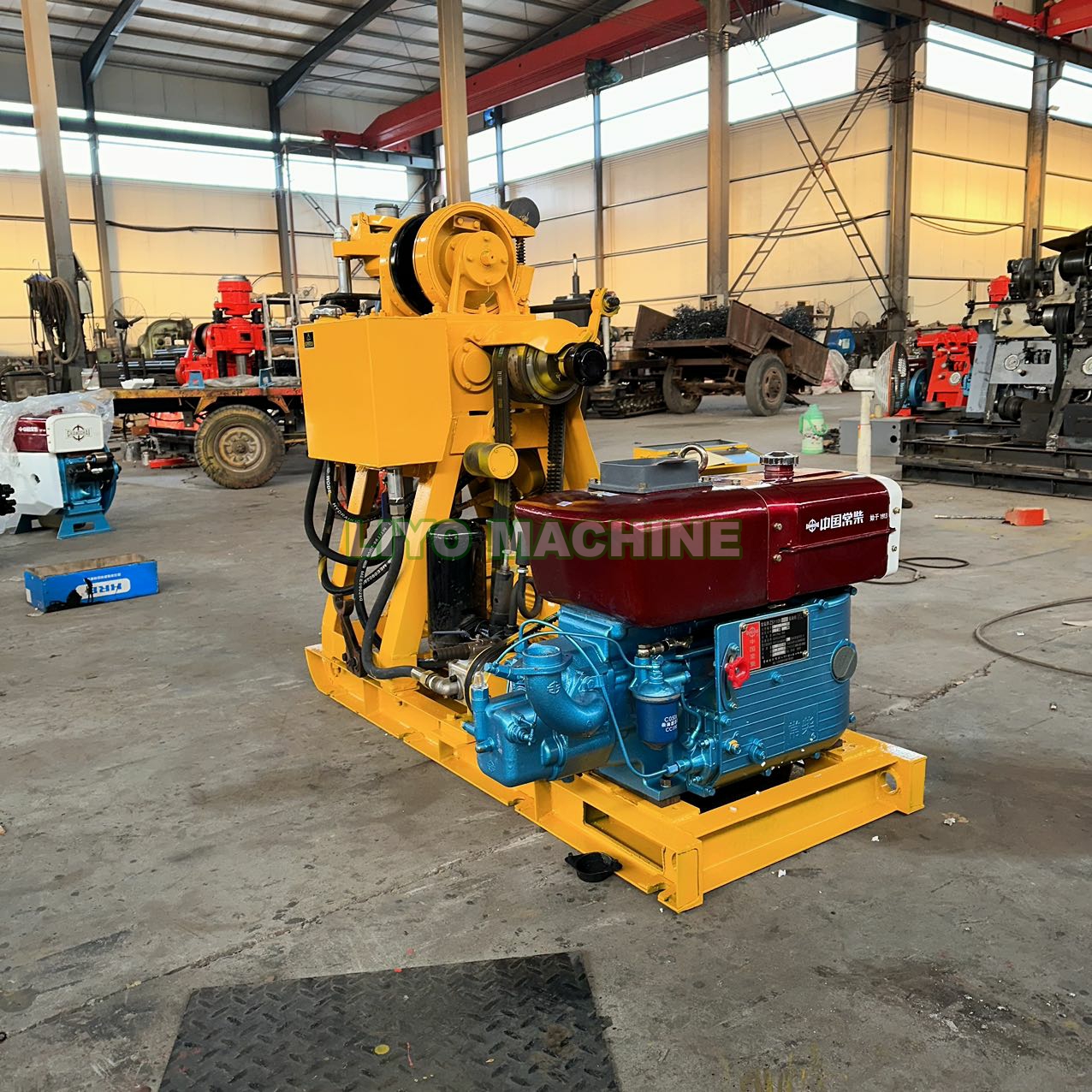

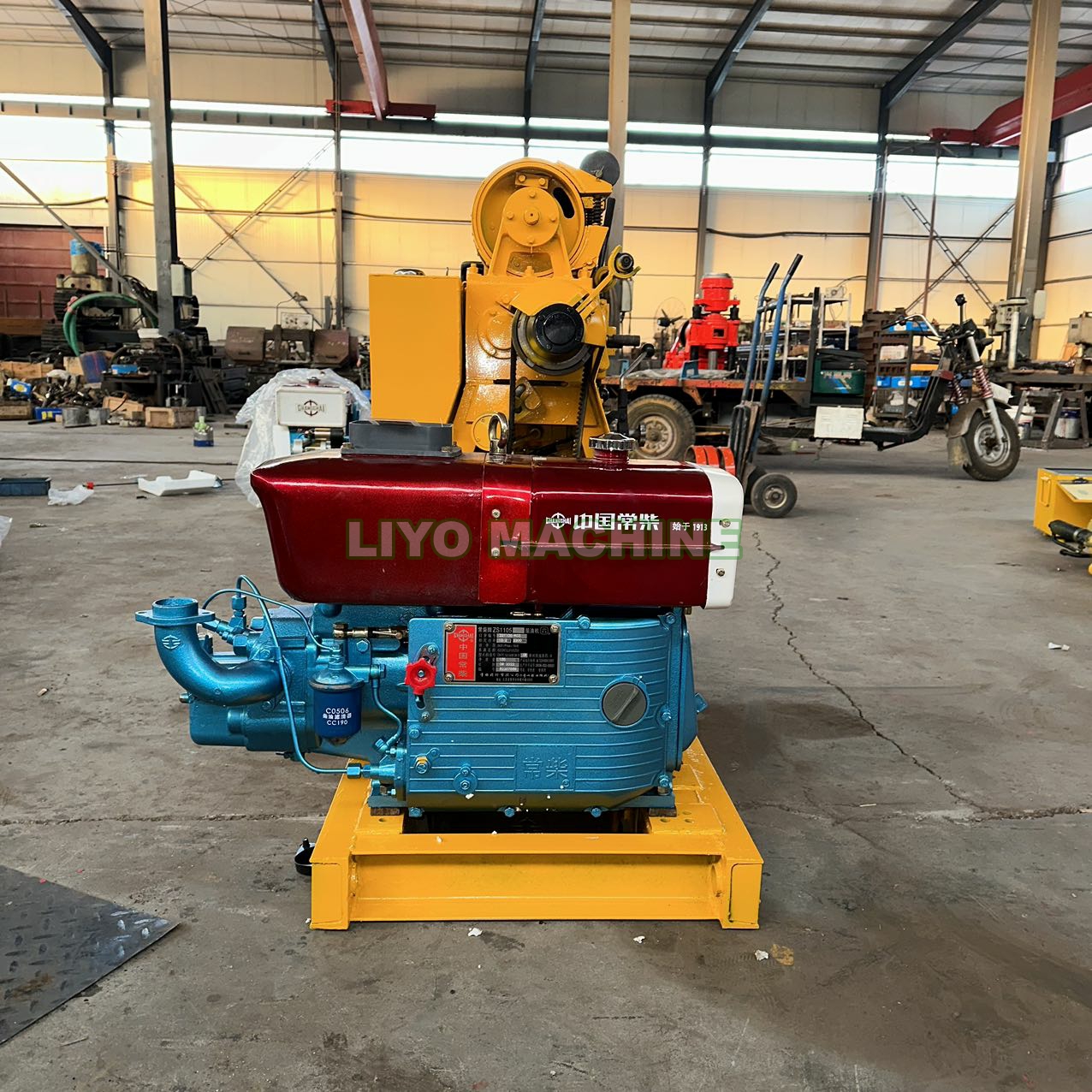

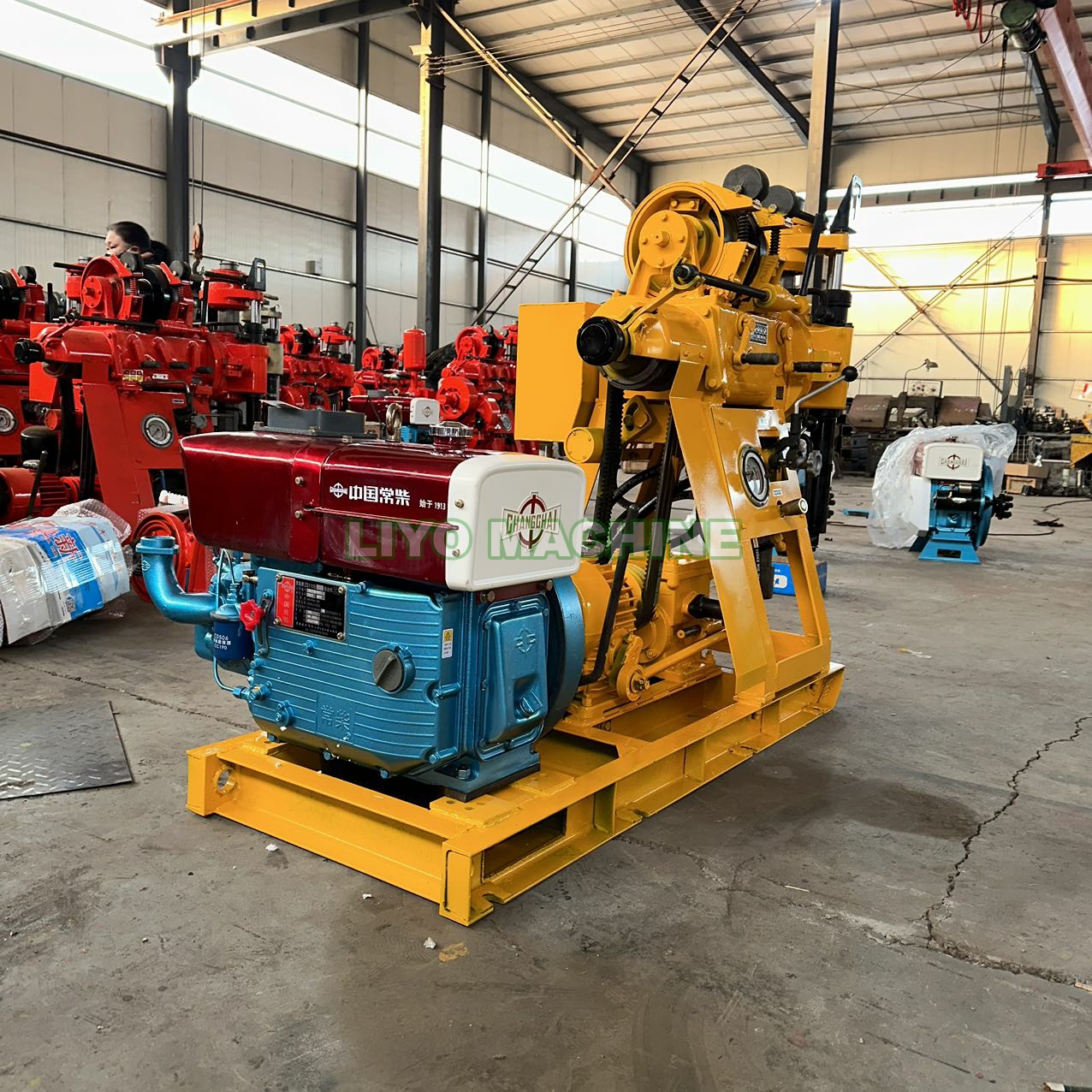

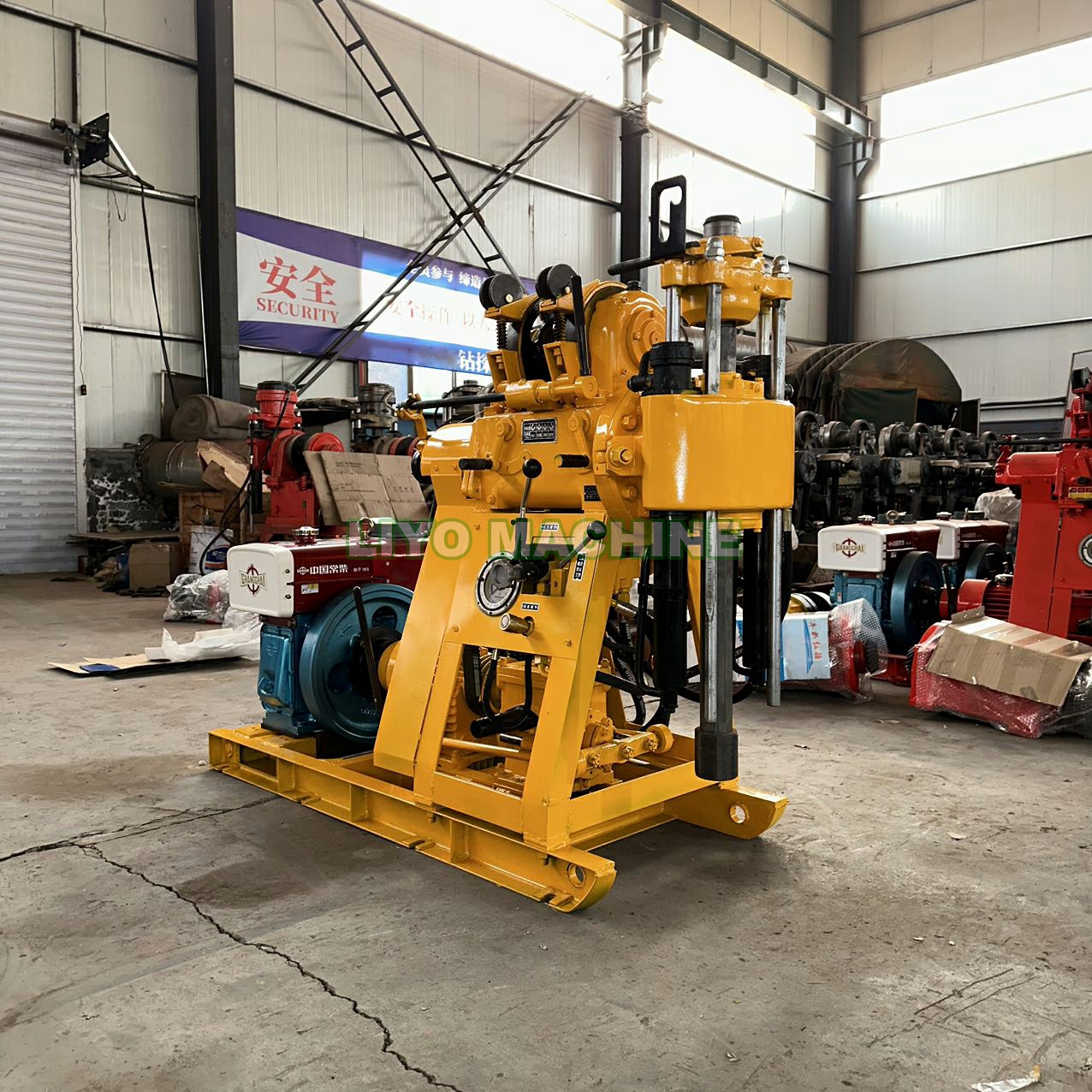

Machine photo 1

Tires can be added according to customer's need
